Long Haul (Trailer/All Position/Closed Shoulder Drive). It delivers rugged reliability, all-around versatility, and improved fuel economy.

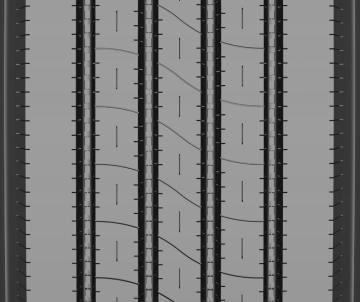

Application: Trailer tire for long-haul trailer axles.
Five-rib design improves stability and traction.
Grooved bottom protectors reduce stone drilling and prolong tire life.
Shallow tread pattern reduces rolling resistance and improves fuel economy.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Standard rim | OD inch | sw inch | td 32ND | Sidewall |
| 22.5" | 295/75R22.5 | 144/141M 14PR | 5ADAMERI01 | 110 | 6175 | 5675 | 9.00 | 39.92 | 11.73 | 13.9 | BLK |
| 295/75R22.5 | 146/143L 16PR | 5ADAMERI02 | 120 | 6610 | 6005 | 9.00 | 39.92 | 11.73 | 13.9 | BLK |

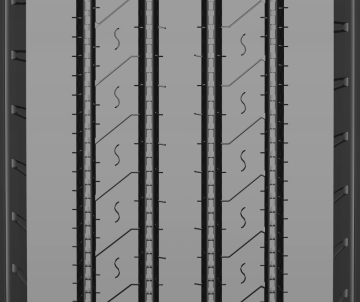

Application: All-position tire for long-haul service.
Features a five-rib design to enhance stability, while multi-blade sipes improves traction and helps dissipate heat for extended tread life.
Grooved bottom protectors help reduce stone drilling.
Specialized compounds extend driving range.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Standard rim | OD inch | sw inch | td 32ND | Sidewall |
| 22.5" | 11R22.5 | 144/142M 14PR | 5ADAMERI05 | 105 | 6175 | 5840 | 8.25 | 41.48 | 11.00 | 18.1 | BLK |
| 11R22.5 | 146/143L 16PR | 5ADAMERI06 | 120 | 6610 | 6005 | 8.25 | 41.48 | 11.00 | 18.1 | BLK | |
| 295/75R22.5 | 144/141M 14PR | 5ADAMERI03 | 110 | 6175 | 5675 | 9.00 | 39.92 | 11.73 | 18.7 | BLK | |
| 295/75R22.5 | 146/143L 16PR | 5ADAMERI04 | 120 | 6610 | 6005 | 9.00 | 39.92 | 11.73 | 18.7 | BLK |

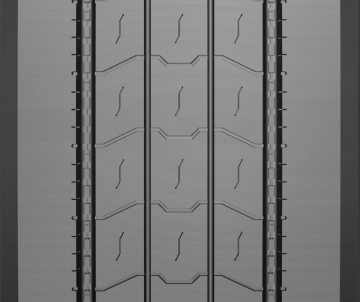

Application: All-position tire for long-haul service.
Features a five-rib design to enhance stability, while multi-blade sipes improves traction and helps dissipate heat for extended tread life.
Grooved bottom protectors help reduce stone drilling.
Specialized compounds extend driving range.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Standard rim | OD inch | sw inch | td 32ND | Sidewall |
| 22.5" | 11R22.5 | 144/142M 14PR | 5ADAMERI09 | 105 | 6175 | 5840 | 8.25 | 41.48 | 11.00 | 18.1 | BLK |
| 11R22.5 | 146/143L 16PR | 5ADAMERI10 | 120 | 6610 | 6005 | 8.25 | 41.48 | 11.00 | 18.1 | BLK | |
| 295/75R22.5 | 144/141M 14PR | 5ADAMERI07 | 110 | 6175 | 5675 | 9.00 | 39.92 | 11.73 | 18.7 | BLK | |
| 295/75R22.5 | 146/143L 16PR | 5ADAMERI08 | 120 | 6610 | 6005 | 9.00 | 39.92 | 11.73 | 18.7 | BLK | |
| 24.5" | 11R24.5 | 146/143M 14PR | 5ADAMERI11 | 105 | 6610 | 6005 | 8.25 | 43.48 | 11.00 | 18.1 | BLK |
| 11R24.5 | 149/146L 16PR | 5ADAMERI12 | 120 | 7160 | 6610 | 8.25 | 43.48 | 11.00 | 18.1 | BLK | |
| 285/75R24.5 | 147/144L 16PR | 5ADAMERI13 | 120 | 6780 | 6175 | 8.25 | 41.34 | 11.14 | 18.1 | BLK |

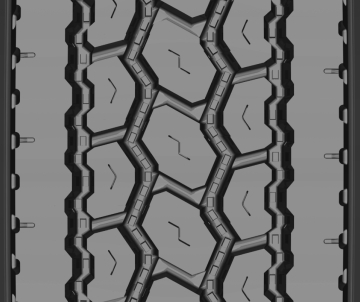

Application: Closed-shoulder design suitable for long-haul driving axles.
Low void ratio tread pattern for increased contact area and steel belt construction offers remarkable driving capability and wear resistance.
Deepened tread design and specialized compounds extend driving range.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Standard rim | OD inch | sw inch | td 32ND | Sidewall |
| 22.5" | 11R22.5 | 144/142M 14PR | 5ADAMERI23 | 105 | 6175 | 5840 | 8.25 | 41.94 | 11.00 | 26.0 | BLK |
| 11R22.5 | 146/143L 16PR | 5ADAMERI24 | 120 | 6610 | 6005 | 8.25 | 41.94 | 11.00 | 26.0 | BLK | |
| 295/75R22.5 | 144/141M 14PR | 5ADAMERI21 | 110 | 6175 | 5675 | 9.00 | 40.39 | 11.73 | 26.0 | BLK | |
| 295/75R22.5 | 146/143L 16PR | 5ADAMERI22 | 120 | 6610 | 6005 | 9.00 | 40.39 | 11.73 | 26.0 | BLK | |
| 24.5" | 11R24.5 | 146/143M 14PR | 5ADAMERI25 | 105 | 6610 | 6005 | 8.25 | 43.94 | 11.00 | 26.0 | BLK |
| 11R24.5 | 149/146L 16PR | 5ADAMERI26 | 120 | 7160 | 6610 | 8.25 | 43.94 | 11.00 | 26.0 | BLK | |
| 285/75R24.5 | 147/144L 16PR | 5ADAMERI27 | 120 | 6780 | 6175 | 8.25 | 41.81 | 11.14 | 26.0 | BLK |

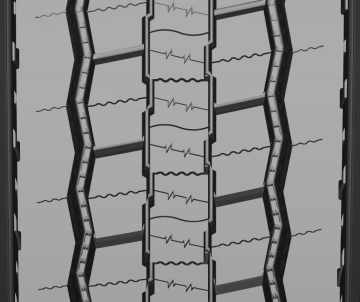

Application: Closed-shoulder design suitable for long-haul driving axles.
Classic pattern and steel belt construction offer remarkable driving capability and wear resistance.
Deepened tread design and specialized compounds extend driving range.
| WHEEL DIAMETER | Size | L.S | Parts Number | Max PSI | Single tire max load LBS | Dual tire max load lbs | Standard rim | OD inch | sw inch | td 32ND | Sidewall |
| 22.5“ | 11R22.5 | 144/142M 14PR | 5ADAMERI16 | 105 | 6175 | 5840 | 8.25 | 41.94 | 11.00 | 26.0 | BLK |
| 11R22.5 | 146/143L 16PR | 5ADAMERI17 | 120 | 6610 | 6005 | 8.25 | 41.94 | 11.00 | 26.0 | BLK | |
| 295/75R22.5 | 144/141M 14PR | 5ADAMERI14 | 110 | 6175 | 5675 | 9.00 | 40.39 | 11.73 | 26.0 | BLK | |
| 295/75R22.5 | 146/143L 16PR | 5ADAMERI15 | 120 | 6610 | 6005 | 9.00 | 40.39 | 11.73 | 26.0 | BLK | |
| 24.5” | 11R24.5 | 146/143M 14PR | 5ADAMERI18 | 105 | 6610 | 6005 | 8.25 | 43.94 | 11.00 | 26.0 | BLK |
| 11R24.5 | 149/146L 16PR | 5ADAMERI19 | 120 | 7160 | 6610 | 8.25 | 43.94 | 11.00 | 26.0 | BLK | |
| 285/75R24.5 | 147/144L 16PR | 5ADAMERI20 | 120 | 6780 | 6175 | 8.25 | 41.81 | 11.14 | 26.0 | BLK |
